# Aligning items: putting symbols back on the grid
|
||||
|
||||
Wires in QElectroTech run straight when the terminals at both ends line up,
|
||||
and terminals line up when their symbols sit on the grid. A symbol that is
|
||||
even a few pixels off the grid gives a bent or stepped wire.
|
||||
|
||||
Symbols leave the grid more easily than you might think:
|
||||
|
||||
- **Alt+arrow** moves a selection by 1 pixel (see
|
||||
**[Mouse modifiers](mouse_modifiers)**, §6), so a few presses leave it
|
||||
between grid points.
|
||||
- **Ctrl while dragging** places freely, ignoring the grid.
|
||||
- Projects made with older versions, or with a different grid setting, may
|
||||
already contain symbols off the grid.
|
||||
|
||||
In the example projects that ship with QElectroTech, 508 of 3,678 placed
|
||||
symbols (14 %) are off the grid.
|
||||
|
||||
Until now nothing put them back: you had to drag each symbol by eye until it
|
||||
happened to land on a grid point. This page covers the commands that do it for
|
||||
you. They were proposed in
|
||||
[discussion #1069](https://github.com/qelectrotech/qelectrotech-source-mirror/discussions/1069)
|
||||
and are built one pull request at a time.
|
||||
|
||||
Menu names are given in French, as QElectroTech shows them until the
|
||||
translations are updated, with an English gloss in italics.
|
||||
|
||||
| Command | What it does | Pull request |
|
||||
|---|---|---|
|
||||
| [Snap to grid](#snap-to-grid) | puts the selected items back on the grid | [#1073](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1073) |
|
||||
| Align, distribute, straighten wires | line symbols up, space them evenly, straighten the wires between them | planned in discussion #1069, not built yet |
|
||||
|
||||
---
|
||||
|
||||
## Snap to grid
|
||||
|
||||
> **Status: pending.** This section describes
|
||||
> [PR #1073](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1073),
|
||||
> not yet merged. Nothing here works until that lands — check the PR before
|
||||
> trying any of this against your own build. This section will drop this
|
||||
> notice once it does.
|
||||
|
||||
### Using it
|
||||
|
||||
1. Select the items to fix. **Ctrl+A** selects everything on the folio,
|
||||
which is the quickest way to tidy a whole page.
|
||||
2. Choose **Édition ▸ Aligner ▸ Aligner sur la grille** (*Edit ▸ Align ▸
|
||||
Snap to grid*). The same command is in the right-click menu of the
|
||||
selection, and in command search (**Ctrl+Shift+M**, type "grille").
|
||||
|
||||
Each selected item moves to the nearest grid point, and the status bar says
|
||||
what happened:
|
||||
|
||||
| Status bar | Meaning |
|
||||
|---|---|
|
||||
| *3 objet(s) remis sur la grille* | 3 items were off the grid and have been moved |
|
||||
| *La sélection est déjà sur la grille* | nothing needed moving; no undo step is added |
|
||||
| *(1 objet(s) verrouillé(s) laissé(s) en place)* | added when locked items were in the selection; they were not moved |
|
||||
|
||||
**One undo step** (Ctrl+Z) puts every item back where it was.
|
||||
|
||||
### Which items move, and to which grid
|
||||
|
||||
| Item | Snaps to |
|
||||
|---|---|
|
||||
| Symbols | the folio grid, by the symbol's origin point: exactly where dragging it would have dropped it |
|
||||
| Pictures | the folio grid |
|
||||
| Free texts | the text grid, the finer step set under **Affichage ▸ Grille des textes** (*View ▸ Text grid*), so a text you placed on a finer step is not pulled onto the coarser folio grid |
|
||||
| Shapes (lines, rectangles, polygons) | not moved: a shape is several points, and no single one is the obvious one to snap |
|
||||
| Locked items | not moved |
|
||||
| Wires | follow their symbols, as they do when you drag |
|
||||
|
||||
Items already on the grid stay exactly where they are.
|
||||
|
||||
### Things worth knowing
|
||||
|
||||
- **Half a step rounds up.** A symbol exactly half a grid step off (5 px on
|
||||
the default 10 px grid) goes to the next grid point, so "back on the grid"
|
||||
is not always "back where it was before the nudge".
|
||||
- **Holding Ctrl makes no difference.** Unlike dragging, where Ctrl means
|
||||
"ignore the grid", this command always snaps to the grid, so it still works
|
||||
if you give it a shortcut that includes Ctrl.
|
||||
- **No default shortcut.** You can assign one under **Configurer
|
||||
QElectroTech ▸ Raccourcis** (*Settings ▸ Shortcuts*); the command is listed
|
||||
in the *Éditeur de schémas* group.
|
||||
- **The grid is the folio's own grid.** If you changed the grid size in the
|
||||
preferences, symbols snap to that size.
|
||||
- **A symbol whose terminals are off the grid inside the symbol itself**
|
||||
still gives bent wires after snapping. That is a problem in the symbol, not
|
||||
its position; fix it in the **[element editor](element_editor)**.
|
||||
|
||||
---
|
||||
|
||||
## See also
|
||||
|
||||
- **[Grid size and element size](grid_and_element_size)** — the folio grid,
|
||||
and why symbols are drawn to it
|
||||
- **[Mouse modifiers](mouse_modifiers)** — what Ctrl, Shift and Alt change
|
||||
while you drag or nudge
|
||||
- **[Grouping items](grouping_items)** — moving several items as one
|
||||
- **[Drawing faster](drawing_faster)** — command search and other commands at
|
||||
the cursor
|
||||
+4
-2
@@ -186,6 +186,7 @@ Arguments are **positional**, not `--flag=value`. The shape is always
|
||||
|---|---|
|
||||
| `--export-pdf` | one PDF, all folios |
|
||||
| `--export-png` / `--export-svg` | a directory, one image per folio |
|
||||
| `--export-dxf` | a directory, one DXF per folio — *pending, [PR #1078](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1078)*; see **[DXF import & export](dxf)** |
|
||||
| `--export-bom` | CSV bill of materials |
|
||||
| `--export-wiring` | CSV from-to wiring list |
|
||||
| `--export-cables` | CSV wiring list, built from the document XML |
|
||||
@@ -198,7 +199,8 @@ Arguments are **positional**, not `--flag=value`. The shape is always
|
||||
| `--check-elements` | validates `.elmt` files or a directory of them |
|
||||
| `--run` | run a JavaScript macro against a project — see **[JavaScript Scripting](scripting)** |
|
||||
|
||||
Plus `--show-terminals`, which paints terminal markers into PDF/PNG/SVG output.
|
||||
Plus `--show-terminals`, which paints terminal markers into PDF/PNG/SVG output
|
||||
(and DXF, with PR #1078).
|
||||
|
||||
Exit codes: `0` success, `1` the work failed, `2` called wrongly — so these are
|
||||
safe to chain in a script with `set -e`.
|
||||
@@ -469,7 +471,7 @@ wait # Wait for all to finish
|
||||
|-----------|-----------|
|
||||
| No CLI option to create or edit a diagram *from a flag* | Use JavaScript scripting (`--run`) for edits with real undo, or the `.qet` XML directly for anything scripting doesn't cover — see **[JavaScript Scripting](scripting)** and **[Automating QElectroTech](api_reference)** |
|
||||
| One project per invocation | Loop in the shell; each run is independent |
|
||||
| No DXF export from the CLI | Use GUI export (File → Export) |
|
||||
| No DXF export from the CLI | Use GUI export (File → Export). `--export-dxf` is pending in [PR #1078](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1078) |
|
||||
|
||||
> **Corrected September 2026.** This section previously claimed QET had no
|
||||
> headless export and no CLI PDF export, and pointed readers at Python
|
||||
|
||||
+101
-5
@@ -13,6 +13,7 @@ you're looking for "import a DXF drawing as a folio", that isn't what either
|
||||
of these does — see §3.
|
||||
|
||||
Source: `sources/createdxf.{cpp,h}`, `sources/dxfpaintdevice.{cpp,h}`,
|
||||
`sources/dxfexport.{cpp,h}` (with PR #1078),
|
||||
`sources/dxf/dxftoelmt.{cpp,h}`.
|
||||
|
||||
---
|
||||
@@ -22,8 +23,100 @@ Source: `sources/createdxf.{cpp,h}`, `sources/dxfpaintdevice.{cpp,h}`,
|
||||
*File → Export*, same dialog as PDF/PNG/SVG, one `.dxf` file per folio. The
|
||||
border, title block and every diagram item on that folio are included.
|
||||
|
||||
**There is no CLI verb for it.** `--export-pdf`, `--export-png` and
|
||||
`--export-svg` exist; DXF export is GUI-only today.
|
||||
In current builds DXF export is GUI-only: `--export-pdf`, `--export-png` and
|
||||
`--export-svg` exist, but there is no DXF equivalent. The next section adds
|
||||
one.
|
||||
|
||||
### From the command line: `--export-dxf`
|
||||
|
||||
> **Status: pending.** This section describes
|
||||
> [PR #1078](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1078),
|
||||
> not yet merged. Nothing here works until that lands — check the PR before
|
||||
> trying any of this against your own build. This section will drop this
|
||||
> notice once it does.
|
||||
|
||||
```bash
|
||||
qelectrotech --export-dxf myproject.qet out/
|
||||
qelectrotech --export-dxf myproject.qet out/ --show-terminals
|
||||
```
|
||||
|
||||
- **One file per folio**, named like the PNG and SVG exports: the folio
|
||||
number on two digits, then its title — `01_General.dxf`,
|
||||
`02_Macro 3.dxf`. The output folder is created if it does not exist.
|
||||
- **The same file the Export dialog writes**, with the dialog's default
|
||||
options, which come from the export settings in the preferences (border,
|
||||
title block and so on). Given the same settings, the two are
|
||||
byte-identical. The column numbers across the top border follow the
|
||||
preference that starts them at 0 or 1, so a machine with a different
|
||||
setting gives a different border.
|
||||
- **`--show-terminals`** draws the terminals, as the dialog's option does.
|
||||
- **Pictures** become outline boxes, as in the dialog (see below), and a
|
||||
note is printed saying so.
|
||||
- **Scripts** run with `--run` get the same export as
|
||||
`qet.exportDxf(outDir, showTerminals)` — see
|
||||
**[JavaScript Scripting](scripting)**.
|
||||
|
||||
Exit codes are the same as the other exports: `0` success, `1` the export
|
||||
failed (for example, the output folder cannot be written), `2` called wrongly.
|
||||
|
||||
**Two exports of the same folio give identical files**, so a DXF can be
|
||||
compared with an earlier one to see what changed. That needs
|
||||
[PR #1075](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1075),
|
||||
which ships with this one: before it, every export wrote its entities in a
|
||||
different order.
|
||||
|
||||
### Layers
|
||||
|
||||
> **Status: pending.** This section describes
|
||||
> [PR #1079](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1079),
|
||||
> not yet merged. Nothing here works until that lands — check the PR before
|
||||
> trying any of this against your own build. This section will drop this
|
||||
> notice once it does.
|
||||
|
||||
Until now everything in an exported DXF sat on **layer 0**, so a CAD program
|
||||
could not tell the border from the wires. With this change each kind of
|
||||
content goes on its own layer:
|
||||
|
||||
| Layer | What is on it |
|
||||
|---|---|
|
||||
| `QET_BORDER` | the folio frame, with its column and row headers |
|
||||
| `QET_TITLEBLOCK` | the title block |
|
||||
| `QET_SYMBOLS` | the drawing of each symbol |
|
||||
| `QET_SYMBOL_TEXTS` | texts belonging to symbols: labels and the like |
|
||||
| `QET_TERMINALS` | terminal markers, only when terminals are drawn (`--show-terminals` or the dialog option) |
|
||||
| `QET_WIRES` | the wires |
|
||||
| `QET_WIRE_NUMBERS` | the texts on wires |
|
||||
| `QET_JUNCTIONS` | junction dots |
|
||||
| `QET_TEXTS` | free texts |
|
||||
| `QET_XREFS` | cross-references: contact tables beside a master, labels beside a slave |
|
||||
| `QET_SHAPES` | lines, rectangles, ellipses and polygons drawn on the folio |
|
||||
| `QET_TABLES` | tables such as the parts list |
|
||||
| `QET_IMAGES` | the outline boxes that stand in for pictures |
|
||||
|
||||
The names are fixed and English, whatever language QElectroTech runs in, so
|
||||
a CAD user's layer filters and scripts keep working. The `QET_` prefix keeps
|
||||
them together in the layer list and apart from the receiving drawing's own
|
||||
layers.
|
||||
|
||||
|
||||
|
||||

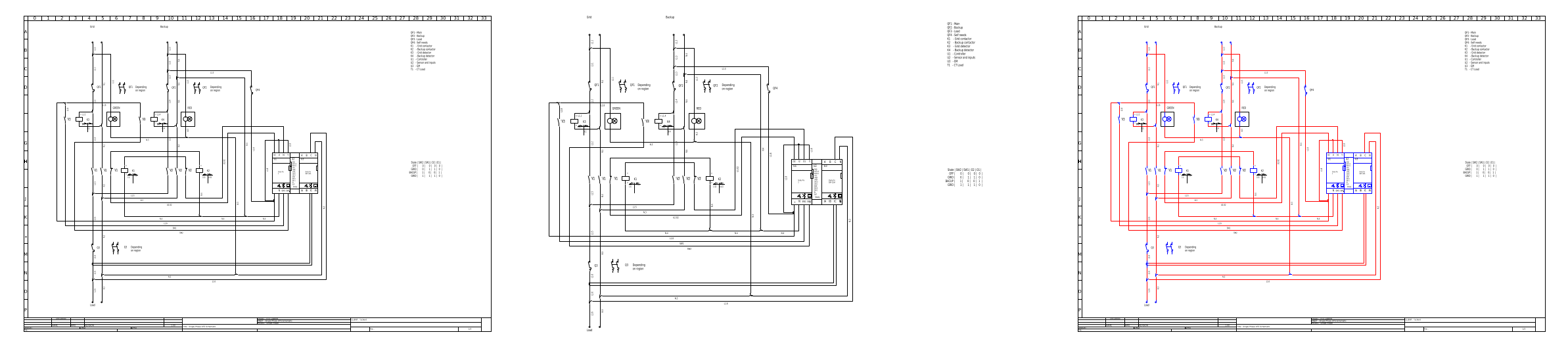

*`2612_ats_singlephase.qet`, folio 1, exported with this change and rendered
|
||||
with ezdxf. Only layer settings in the viewer differ between the three.*
|
||||
|
||||
**Colours.** Where QElectroTech sets no colour of its own, entities take
|
||||
their layer's colour (*BYLAYER*), so recolouring a layer in the CAD program
|
||||
recolours everything on it. The file still looks the same when opened, since
|
||||
every layer starts white on black, black on white. Wires keep the colour they
|
||||
have on the folio: until this change every wire was exported in the default
|
||||
colour, and 723 of the 3,190 wires in the example projects lost theirs. A
|
||||
two-colour wire gets its main colour.
|
||||
|
||||
**What does not change:** the lines themselves, their positions and the DXF
|
||||
version. Only the layer each entity is on and its colour code differ from an
|
||||
older export.
|
||||
|
||||
Not included yet: an option to put everything back on layer 0, symbols as
|
||||
DXF blocks, and dashed wires (they come out continuous).
|
||||
|
||||
### How it's rendered
|
||||
|
||||
@@ -100,11 +193,14 @@ project, not with QET.
|
||||
- **Not round-trip safe.** Export's outline-only, no-image limitations (§1)
|
||||
mean a `.dxf` written by QET is not a faithful source to import back,
|
||||
even setting aside that import and export use entirely different code.
|
||||
- **Not a general CAD interchange path**, in the sense of preserving layers,
|
||||
blocks, or DXF metadata beyond raw geometry — both directions work at the
|
||||
level of individual drawing primitives.
|
||||
- **Not a general CAD interchange path**, in the sense of preserving blocks
|
||||
or DXF metadata beyond raw geometry — both directions work at the level of
|
||||
individual drawing primitives. Export puts content on named layers once
|
||||
[PR #1079](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1079)
|
||||
lands (§1, *Layers*).
|
||||
|
||||
---
|
||||
|
||||
See also: **[Automating QElectroTech](api_reference)** ·
|
||||
**[CLI Reference](cli_reference)** ·
|
||||
**[Linking elements](element_linking)**
|
||||
|
||||
@@ -120,4 +120,5 @@ against neighbouring symbols and resize by hand if it needs to match.
|
||||
- **[Preferences reference](preferences)** — where the grid settings live in the UI
|
||||
- **[Using the element editor](element_editor)** — drawing tools, saving, checks
|
||||
- **[Mouse modifiers](mouse_modifiers)** — Shift/Ctrl/Alt while dragging
|
||||
- **[Aligning items](aligning_items)** — putting symbols that left the grid back on it *(pending)*
|
||||
- **[Elements XML](elements_XML)** — the `<definition>` `width`/`height`/`hotspot` attributes
|
||||
|
||||
+124
@@ -0,0 +1,124 @@
|
||||
# Grouping items on a folio
|
||||
|
||||
Some things on a folio belong together: a picture and its caption, a symbol
|
||||
with a frame drawn round it, a block of symbols with the notes that explain
|
||||
them. Without groups they have to be selected piece by piece every time they
|
||||
move or are copied, and it is easy to leave one behind.
|
||||
|
||||
**Grouper** (*Group*) ties selected items together so that they select,
|
||||
move, copy and delete as one. **Dégrouper** (*Ungroup*) undoes it. This was
|
||||
asked for in [issue #349](https://github.com/qelectrotech/qelectrotech-source-mirror/issues/349)
|
||||
and on the forum ([#2467](https://qelectrotech.org/forum/viewtopic.php?id=2467),
|
||||
[#356](https://qelectrotech.org/forum/viewtopic.php?id=356)), and proposed in
|
||||
[discussion #1070](https://github.com/qelectrotech/qelectrotech-source-mirror/discussions/1070).
|
||||
|
||||
Menu names are given in French, as QElectroTech shows them until the
|
||||
translations are updated, with an English gloss in italics.
|
||||
|
||||
> **Status: pending.** Everything on this page describes
|
||||
> [PR #1074](https://github.com/qelectrotech/qelectrotech-source-mirror/pull/1074),
|
||||
> not yet merged. Nothing here works until that lands — check the PR before
|
||||
> trying any of this against your own build. This page will drop this
|
||||
> notice once it does.
|
||||
|
||||
---
|
||||
|
||||
## 1. Making a group
|
||||
|
||||
1. Select two or more items. Any mix of these can be grouped:
|
||||
- symbols,
|
||||
- free texts,
|
||||
- shapes (lines, rectangles, ellipses, polygons),
|
||||
- pictures.
|
||||
2. Choose **Édition ▸ Grouper** (*Edit ▸ Group*). It is also in the
|
||||
right-click menu of the selection, and in command search
|
||||
(**Ctrl+Shift+M**, type "grouper").
|
||||
|
||||
**Grouper** is greyed out when the selection is fewer than two items, or is
|
||||
already exactly one group.
|
||||
|
||||
**Wires are never part of a group.** They are drawn between symbols, so they
|
||||
follow their symbols when the group moves, exactly as they do today.
|
||||
|
||||
## 2. Working with a group
|
||||
|
||||
| You do | What happens |
|
||||
|---|---|
|
||||
| Click any member | the whole group is selected |
|
||||
| Drag a member | the whole group moves |
|
||||
| Arrow keys, with the group selected | the whole group moves |
|
||||
| Draw a selection rectangle that touches part of a group | the whole group is selected when you release the mouse |
|
||||
| **Ctrl**+click a member of a selected group | the whole group leaves the selection, as a single item would |
|
||||
| **Ctrl**+click a member of an unselected group | the whole group joins the selection |
|
||||
| Copy, cut, **Delete** | act on the whole group |
|
||||
| **Shift+Space**, **Pivoter le groupe** (*rotate as group*) | the whole group turns 90° round its centre, keeping its layout |
|
||||
| **Space**, **Pivoter** (*rotate*) | each member turns where it stands, as for any selection |
|
||||
| Paste | the copy is a new group of its own, separate from the original |
|
||||
| Duplicate a folio | each group on it becomes a new group on the copy |
|
||||
|
||||
Clicking a member of a group that is already selected keeps the whole group
|
||||
selected.
|
||||
|
||||
**Grouping groups merges them.** Select a group and another item (or
|
||||
another group) and choose **Grouper**: the result is one group holding all of
|
||||
them. There are no groups inside groups.
|
||||
|
||||
## 3. Ungrouping
|
||||
|
||||
Select a group, or any member of it, and choose **Édition ▸ Dégrouper**
|
||||
(*Edit ▸ Ungroup*), also in the right-click menu and command search. Every
|
||||
member becomes a separate item again, and nothing moves.
|
||||
|
||||
Both commands are undoable. Undoing **Dégrouper** restores exactly the groups
|
||||
there were before, not new ones.
|
||||
|
||||
Neither command has a default shortcut (**Ctrl+G** is already *go to
|
||||
element*). You can assign one under **Configurer QElectroTech ▸ Raccourcis**
|
||||
(*Settings ▸ Shortcuts*), in the *Éditeur de schémas* group.
|
||||
|
||||
## 4. In the project file
|
||||
|
||||
Each grouped item carries one extra attribute, `group`, holding the group's
|
||||
id; members of the same group share the id. Nothing else in the file
|
||||
changes:
|
||||
|
||||
- A project **without** groups saves exactly as it did before, byte for byte.
|
||||
- An **older version** of QElectroTech opens a project with groups, shows
|
||||
every item, and simply ignores the grouping. If it saves the project, the
|
||||
groups are lost.
|
||||
|
||||
Groups are also recorded in the project database (a `group_uuid` column on
|
||||
the element, shape, free-text and picture tables), so a query or script can
|
||||
find which items belong together. See
|
||||
**[The project database](project_database)**.
|
||||
|
||||
## 5. Not included yet
|
||||
|
||||
Planned in [discussion #1070](https://github.com/qelectrotech/qelectrotech-source-mirror/discussions/1070),
|
||||
not built:
|
||||
|
||||
- **Editing one member without ungrouping.** For now, ungroup, edit, and
|
||||
group again.
|
||||
- **Space rotating a group as a unit.** Today Space turns each member in
|
||||
place; use **Shift+Space** (*Pivoter le groupe*) to turn the group as a
|
||||
whole.
|
||||
- **Nested groups.**
|
||||
- **Locked items.** A locked member is not treated specially: it stays where
|
||||
it is while the rest of its group moves.
|
||||
- **Groups in the symbol editor** ([element editor](element_editor)).
|
||||
|
||||
**Grouper les textes sélectionnés** (*group the selected texts*), which
|
||||
groups the texts of one symbol, is a different, older feature and is not
|
||||
affected.
|
||||
|
||||
---
|
||||
|
||||
## See also
|
||||
|
||||
- **[Aligning items](aligning_items)** — putting symbols back on the grid
|
||||
- **[Templates](templates)** — saving a set of items for reuse: select them
|
||||
and use **Créer un template** in the right-click menu
|
||||
- **[Mouse modifiers](mouse_modifiers)** — what Ctrl and Shift change while
|
||||
you select and drag
|
||||
- **[The project database](project_database)** — the tables a query or script
|
||||
can read
|
||||
Binary file not shown.
|
After Width: | Height: | Size: 79 KiB |
@@ -119,6 +119,10 @@ With something selected and no text being edited:
|
||||
Both grids are configurable in **[Preferences → General](preferences)**,
|
||||
separately from the grid the mouse snaps to.
|
||||
|
||||
A few **Alt**+arrow presses leave a symbol between grid points, which bends
|
||||
its wires. **[Aligning items](aligning_items)** describes the command that
|
||||
puts it back *(pending, PR #1073)*.
|
||||
|
||||
---
|
||||
|
||||
## 7. View and navigation
|
||||
@@ -175,4 +179,6 @@ rotating. It keeps its own grid settings, separate from the diagram's.
|
||||
- **[Keyboard-only control](keyboard_control)** — driving QET without a mouse
|
||||
- **[Preferences reference](preferences)** — the grid and movement settings
|
||||
- **[Templates](templates)** — which are placed by dragging, and nothing else
|
||||
- **[Aligning items](aligning_items)** — snap a selection back to the grid *(pending)*
|
||||
- **[Grouping items](grouping_items)** — select and move several items as one *(pending)*
|
||||
- **[Tips & Tricks](tips_and_tricks)** — faster drawing generally
|
||||
|
||||
+1
@@ -83,6 +83,7 @@ script instead of a flag:
|
||||
qet.exportPdf(output, showTerminals = false)
|
||||
qet.exportPng(outDir, showTerminals = false)
|
||||
qet.exportSvg(outDir, showTerminals = false)
|
||||
qet.exportDxf(outDir, showTerminals = false) // pending, PR #1078
|
||||
qet.exportCables(output)
|
||||
qet.exportWires(output)
|
||||
qet.exportBom(output)
|
||||
|
||||
+1
@@ -191,5 +191,6 @@ path, or copy the `.qetmak` files into the default folder above.
|
||||
- **[Using the element editor](element_editor)** — for building the single
|
||||
symbols a template is assembled from
|
||||
- **[Preferences reference](preferences)** — where the templates folder is set
|
||||
- **[Grouping items](grouping_items)** — keeping items together on the folio, rather than saving them for reuse *(pending)*
|
||||
- **[Tips & Tricks](tips_and_tricks)** — other ways to speed up repeated
|
||||
drawing
|
||||
|
||||
Reference in New Issue
Block a user
