Script buttons

Keep a JavaScript script in QElectroTech, give it an icon and a shortcut, and run it from a button, a menu, the shortcut bar or command search — instead of picking the file again every time. You can write the script yourself, or let an AI assistant write, test and store it through the MCP server. Both end in the same place: a file in your scripts folder, which QElectroTech turns into a button.

Status: merged on 2 October 2026. Everything on this page is in development builds made since then; it is not in a release yet. The pull requests:

PR What it adds Builds on

#1219 qet.currentFolio(), qet.apiSignatures(), one undo step per run —

#1220 stored scripts, the Scripts menu and toolbar #1219

#1221 the script manager window #1220

#1224 MCP tools to write, test and store scripts —

The proposal and its open questions are in discussion #1226. The same series continues with live mode and the macro recorder.

PR	What it adds	Builds on
#1219	`qet.currentFolio()`, `qet.apiSignatures()`, one undo step per run	—
#1220	stored scripts, the Scripts menu and toolbar	#1219
#1221	the script manager window	#1220
#1224	MCP tools to write, test and store scripts	—

Menu and option names are given in French, as QElectroTech shows them until the translations are updated, with an English gloss in italics.

Why this exists

JavaScript Scripting already lets a script read a project, edit it with real undo, and export it. But from the editor, Exécuter un script… (Run script) asks for a file every time, and a script cannot tell which sheet you are looking at. So a repeated task — put a revision note on this sheet, renumber the selected wires, rotate the selected coils — stays a chore. Script buttons make a script a command like any other.

Before you start: scripting must be on

Scripts are off by default (PR #984). A script runs with your rights: it can read and change the open project and write files. The setting is in Configurer QElectroTech > Général (*Settings

General*): Autoriser l'exécution de scripts JavaScript (Allow running JavaScript scripts). If it is off, the first time you press a script button QElectroTech asks whether to turn it on. Nothing on this page gets around that switch.

The scripts folder

Each script is one .js file in the scripts folder of your QElectroTech data folder:

System	Folder
Linux	`~/.local/share/QElectroTech/QElectroTech/scripts/`
Windows	`%APPDATA%\QElectroTech\QElectroTech\scripts\`
macOS	`~/Library/Application Support/QElectroTech/QElectroTech/scripts/`

If you start QElectroTech with --data-dir, the folder moves with it. Projet > Scripts > Ouvrir le dossier des scripts (Project > Scripts > Open the scripts folder) opens it, creating it if needed.

QElectroTech watches the folder. Drop a script in and its button appears straight away; delete it and the button, its menu entry and its shortcut go. No restart, and nothing to register.

Scripts are yours, not the project's: nothing is added to the .qet file, and a project you receive cannot bring a script with it.

The header

The top of the file says how the button looks. One file holds both, so there is nothing to keep in step and one file to share:

// ==QETScript==
// @name     Add revision note
// @icon     note.svg
// @tooltip  Puts a "Rev A" note on the sheet you are looking at
// @shortcut Ctrl+Alt+R
// @context  canvas
// @api      1
// ==/QETScript==
var f = qet.currentFolio();
qet.addText(f, "Rev A", 40, 40);

Key	Required	Meaning
`@name`	yes	the button's text, and the name shown in menus, command search and the undo history
`@icon`	no	a picture file next to the script (`note.svg`, `note.png`), or `builtin:<name>` for an icon from QElectroTech's theme. Left out: a tile with the name's initials
`@tooltip`	no	the text shown when you hover the button
`@shortcut`	no	a keyboard shortcut, written as Qt writes them (`Ctrl+Alt+R`). A shortcut you set in the shortcut settings wins over it
`@context`	no	when the button is usable — see the next table. Default `canvas`
`@api`	no	the header version; only `1` exists

`@context`	The button works when…
`canvas`	a project is open (always)
`selection`	something is selected on the sheet
`conductor`	at least one wire is selected

Without an open project every script button is greyed out.

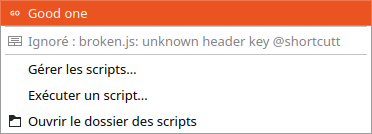

A wrong header is refused, not ignored. An unknown key (@shortcutt), a missing @name, an unknown @context or an @api other than 1 means no button. The file is listed greyed in Projet > Scripts as Ignoré : broken.js: unknown header key @shortcutt (Ignored), so you can see which line is wrong. A misspelt shortcut that silently did nothing would be harder to find.

A file name becomes the script's id: add-revision-note.js is diagrameditor.script.add-revision-note in the shortcut settings.

Running a script

Every stored script is an ordinary command, so you can reach it any of these ways:

Where	How
Projet > Scripts (Project > Scripts)	one entry per script, with its icon
the Scripts toolbar	one button per script. Hidden while the folder has no script, shown once the first one arrives
its keyboard shortcut	`@shortcut`, or one you set in the shortcut settings
the S shortcut bar	add it with "…" → Customise, like any command (see Drawing faster)
command search, Ctrl+Shift+M	type the script's name

Below the scripts, the Projet > Scripts menu holds:

Entry	Does
Enregistrer une macro (Record a macro)	see Macro recorder (PR #1227)
Gérer les scripts… (Manage scripts)	the script manager, below
Exécuter un script... (Run script)	run any `.js` file once, as before — it moves here from the Projet menu
Ouvrir le dossier des scripts	open the scripts folder

One click, one Ctrl+Z

A script run from the editor is one undo step, named Script : <name>. A button that adds twenty items is undone with one Ctrl+Z, not twenty. This also applies to Exécuter un script…. A script that changes nothing leaves no empty step behind. Headless --run keeps one step per call, as before.

Which sheet the script works on

qet.currentFolio() returns the index of the sheet on screen, so a button acts where you are looking. Headless (--run, or an assistant testing a copy) it returns 0, the first sheet, so the same script can be tried without a window. It returns -1 if the project has no sheet.

The script manager

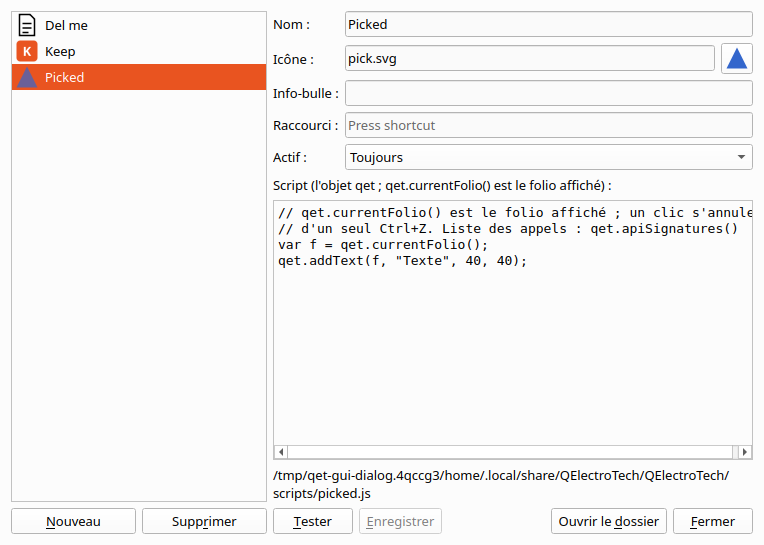

Projet > Scripts > Gérer les scripts… (Manage scripts) lists your scripts with their icons on the left, and edits the selected one on the right.

Field	Header line it writes
Nom : (Name)	`@name`
Icône : (Icon)	`@icon`. Leave it empty for the initials tile, type `builtin:<name>` for a theme icon, or click the preview to choose an SVG or PNG — the file is copied into the scripts folder
Info-bulle : (Tooltip)	`@tooltip`
Raccourci : (Shortcut)	`@shortcut`
Actif : (Active)	`@context`: Toujours (Always), Avec une sélection (With a selection), Avec un conducteur sélectionné (With a wire selected)

Below the fields is the script's text, a plain text editor.

Button	Does
Nouveau (New)	starts a script called Nouveau script from a template
Enregistrer (Save)	writes the file; the button appears or updates
Tester (Test)	saves, then runs it on the current project. Ctrl+Z takes it back
Supprimer (Delete)	asks, then deletes the file, and its icon if no other script uses it
Ouvrir le dossier	opens the scripts folder
Fermer (Close)	asks whether to save first if the script was changed

A script whose header is wrong is listed with the reason (Pas de bouton : …, No button), and Enregistrer refuses to save a header that would give no button, with the reason under the editor.

The manager only writes files. The folder does the rest, so the manager, a text editor and an AI assistant can never disagree about what a script is.

Letting an AI assistant write the script

With the MCP server set up (Connecting an AI assistant), you can ask: "make me a button that puts a Rev A note on the sheet I'm looking at". The assistant:

reads the call list with qet_script_api,
writes the script and tries it with qet_script_test — on a copy of one of your projects, which it then compares with the original, so you see what it would change,
stores it with qet_script_install, optionally with an SVG icon it drew.

The button appears in your open QElectroTech. The assistant never presses it: you do. (To let it act on the open project, see live mode.)

Tool	Does	Needs `QET_ENABLE_SCRIPTING=1`
`qet_script_api`	every call a script can make, with its arguments, taken from the QElectroTech it targets	yes
`qet_script_test`	runs script text on a copy of a project and returns what changed (a `qet_diff`); the project is never modified	yes
`qet_script_install`	stores a script as a button: checks the header, writes `<id>.js` and optionally `<id>.svg`. Given `test_project`, it tests first and refuses a script that fails	yes
`qet_script_list`	the stored scripts, with their header fields, and the files that give no button and why	no
`qet_script_read`	the text and icon of one stored script	no
`qet_script_remove`	deletes a stored script, and its icon if no other script uses it	yes
`qet_about`	what QElectroTech last wrote about itself: its folders, whether scripting is on, its stored scripts	no

QET_ENABLE_SCRIPTING=1 goes in the environment the MCP server is started in, as for the editing tools (see Scripting gate).

Where the server puts scripts. The server chooses the folder; a tool call cannot. In order: QET_MCP_SCRIPTS_DIR if set; else the folder QElectroTech named in qet-assistant.json; else the platform folder in the table above. Set QET_MCP_SCRIPTS_DIR if you start QElectroTech with --data-dir and it has not run since.

qet-assistant.json

Whenever an editor window opens, and whenever the stored scripts or the settings change, QElectroTech writes qet-assistant.json in the platform data folder (~/.local/share/QElectroTech/QElectroTech/ on Linux, %APPDATA%\QElectroTech\QElectroTech\ on Windows) — there even when --data-dir moves everything else, so the server can always find it. It lists QElectroTech's version, every folder in use (data, settings, scripts, element and title block collections), whether scripting and live mode are on, every script call, the stored scripts and the ones refused, and — only while live mode is open — how to reach it. Only you can read it. qet_about shows it to the assistant, without the live-mode token.

Worked example: a button by hand

Projet > Scripts > Ouvrir le dossier des scripts.

Save this as rotate-selected.js there:

// ==QETScript==
// @name     Rotate selected half a turn
// @tooltip  Rotates every selected symbol on this sheet by 180°
// @context  selection
// ==/QETScript==
var f = qet.currentFolio();
var uuids = qet.selectedElements(f);
for (var i = 0; i < uuids.length; i++)
    qet.rotateElement(f, uuids[i], 180);
qet.log("rotated " + uuids.length + " symbol(s)");

With no @icon, the button shows a tile with the name's initials. Other calls are listed on JavaScript Scripting, and qet.apiSignatures() returns every call your QElectroTech knows.

The Scripts toolbar appears with the new button, greyed until you select something.
Select some symbols, click. One Ctrl+Z undoes all the rotations.

Limitations

Your folder only. No scripts per project or shared across a company yet (open question 3 in discussion #1226).
No questions to the user. A script cannot yet ask for a value when you press its button; one button does one thing.
macOS has not been tested. Linux and Windows have, including a Windows build run under Wine.
No arbitrary menu commands from a script, as before — see JavaScript Scripting.
